How Does a Toilet Work Diagram

Toilets are an essential fixture in modern plumbing systems, designed to efficiently dispose of human waste while maintaining hygiene and comfort. Understanding how a toilet works not only demystifies this common household item but also highlights the intricate engineering involved in its operation. This document will explore how does a toilet work diagram, their functions, and how they work together to ensure effective waste removal and water conservation. By delving into the mechanics behind toilet systems, we can appreciate the advancements that have made these sanitary conveniences both functional and reliable.

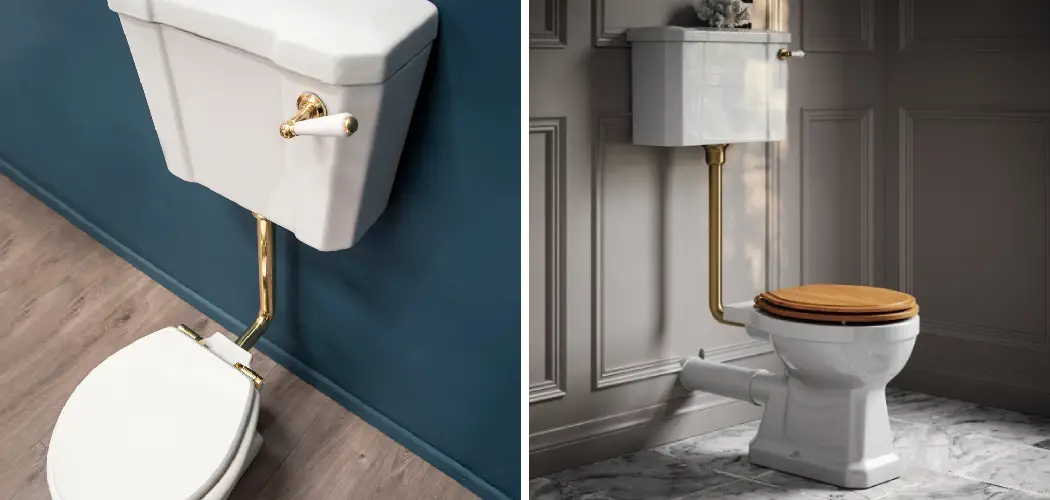

How Does a Toilet Work Diagram

Basic Components of a Toilet

A typical toilet consists of several key components that work in harmony to facilitate waste removal and maintain cleanliness. The primary parts include the toilet bowl, which holds water and receives waste; the tank, where water is stored before flushing; and the flush mechanism, which activates the release of water from the tank into the bowl.

Within the tank, components such as the fill valve and flush valve play crucial roles: the fill valve refills the tank after a flush, while the flush valve controls the flow of water into the bowl during flushing. Additionally, the toilet seat provides comfort and accessibility, and the trap, located within the bowl, ensures that waste is directed efficiently into the sewage system while maintaining a water seal to prevent odours from escaping.

10 Methods How Does a Toilet Work Diagram

1. The Basic Components of a Toilet

To understand how a toilet works, it’s crucial to familiarize yourself with its basic components. A standard toilet comprises several key parts: the tank, the bowl, the flush handle, the fill valve, the flush valve, the flapper, the overflow tube, and the siphon jet. The tank is the upper part of the toilet that holds water for flushing, while the bowl is the lower part where waste is collected. Each component has a specific role in the flushing and refilling process, and understanding their functions helps in grasping the overall operation of the toilet.

2. The Flush Handle Mechanism

The flush handle is the user interface that initiates the flushing process. When you push or pull the flush handle, it activates a lever or chain connected to the flush valve inside the tank. This lever or chain lifts the flush valve, allowing water to flow from the tank into the bowl. The flush handle’s mechanism is a simple yet effective design that triggers the entire flushing sequence, making it a fundamental part of toilet operation.

Activates a Lever or Chain Connected to the Flush Valve

3. The Fill Valve Operation

After a flush, the tank needs to be refilled with water. The fill valve, also known as the ballcock or inlet valve, controls this process. When the tank empties, the fill valve opens to allow water to flow from the supply line into the tank. The valve is equipped with a float that rises with the water level. When the float reaches a predetermined level, the fill valve closes, stopping the water flow. This automatic process ensures that the tank is refilled to the correct level, ready for the next flush.

4. The Flush Valve and Flapper Assembly

The flush valve, located at the bottom of the tank, plays a crucial role in the flushing process. The flapper is a rubber or plastic seal that covers the flush valve. When the flush handle is activated, the flapper lifts, allowing water to rush from the tank into the bowl. As the water flows through the flush valve and into the bowl, it creates a siphoning action that helps to remove waste. Once the flush is complete, the flapper returns to its seated position, sealing the flush valve and allowing the tank to refill.

5. The Overflow Tube Function

The overflow tube is an essential safety feature in the toilet tank. Its primary function is to prevent the tank from overflowing in the event of a malfunction or excessive water flow. If the fill valve fails or the float is set too high, water will rise to the top of the tank and flow into the overflow tube. The overflow tube directs excess water into the bowl, preventing spillage and potential water damage. This component ensures that the toilet remains functional and safe even if there are issues with the fill valve or float mechanism.

6. The Siphon Jet and Bowl Flush

The siphon jet is an integral part of the toilet bowl’s flushing mechanism. Located at the bottom of the bowl, the siphon jet helps to create a powerful flush that moves waste through the trap and into the drainpipe. When the flush valve opens, water is directed into the siphon jet, creating a strong stream that initiates the siphoning action. This action pulls the waste and water out of the bowl and into the drain, effectively clearing the bowl and preparing it for the next use.

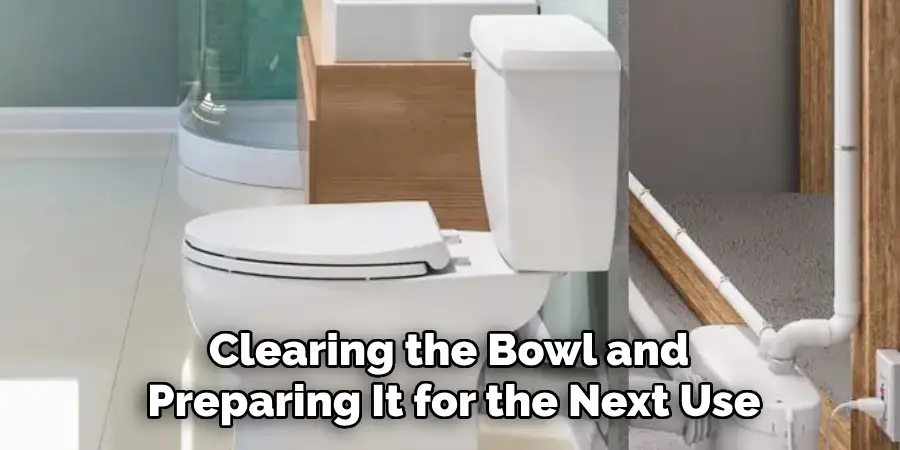

Clearing the Bowl and Preparing It for the Next Use

7. The Trap and Drainage System

The trap is a crucial component of the toilet’s drainage system. It is a curved section of pipe located beneath the toilet bowl that holds a small amount of water. This water acts as a seal to prevent sewer gases from entering the bathroom. When the toilet is flushed, the siphoning action created by the siphon jet pushes the waste and water through the trap and into the drainage system. The trap’s design ensures that waste is effectively removed while maintaining a barrier against unpleasant odors.

8. The Water Supply Line Connection

The water supply line is the conduit through which water flows into the toilet tank. It is connected to the fill valve and provides a constant supply of water for flushing. The supply line is typically made of flexible tubing or a rigid pipe and is attached to a shutoff valve located behind the toilet. The shutoff valve allows you to control the water flow to the toilet and is useful for repairs or maintenance. Understanding the water supply line’s connection helps in diagnosing issues related to water flow and refilling.

9. The Maintenance and Troubleshooting

Regular maintenance is essential for the proper functioning of a toilet. Common issues include leaks, clogs, and improper flushing. To troubleshoot these problems, start by inspecting the components for any visible damage or wear. Check the flush handle, fill valve, and flush valve for proper operation. Ensure that the flapper is sealing correctly and that the siphon jet is free of obstructions. Addressing minor issues promptly can prevent more significant problems and extend the lifespan of your toilet.

10. The Role of the Toilet Diagram

A detailed diagram of a toilet is an invaluable tool for understanding its operation and components. The diagram provides a visual representation of how each part of the toilet interacts and functions during the flushing process. By studying the diagram, you can gain a clearer understanding of the mechanisms involved and how they work together to ensure effective waste removal and water management. The diagram also serves as a reference for troubleshooting and repairs, making it easier to identify and address any issues with the toilet.

Ensure That the Flapper is Sealing Correctly

Things to Consider When Maintaining a Toilet

When it comes to maintaining your toilet, several factors should be taken into account to ensure optimal performance and longevity. Firstly, regularly inspect for leaks around the base of the toilet and the water supply line; even a small leak can increase your water bill significantly over time. Additionally, pay attention to the flush performance—if you notice multiple flushes are required to clear waste, it may indicate issues with the flapper or siphon jet that need to be addressed.

Next, consider the type of cleaning products you use. Harsh chemicals can damage the internal components of the toilet, particularly the flapper and gaskets. Instead, opt for gentle, toilet-safe cleaners. Moreover, monitor the water level in the tank; it should align with the marked line on the inside of the tank. If it’s too low, it may lead to inadequate flushing, while too high could result in overflow through the overflow tube.

Common Mistakes to Avoid

Maintaining a toilet requires attention to detail, and there are several common mistakes that homeowners should be aware of to prevent unnecessary issues. One major mistake is neglecting to regularly check for toilet leaks. Small leaks can lead to significant water waste and higher bills, so it’s important to visually inspect the base and supply line routinely. Another mistake is using abrasive cleaning tools or harsh chemicals, which can cause damage to the toilet’s internal parts, such as the flapper and gaskets. Instead, always opt for non-abrasive cleaners specifically designed for toilets.

Regularly Check for Toilet Leaks

Additionally, many people fail to adjust the float height correctly, which can lead to improper flushing or frequent overflows. It’s crucial to ensure that the water level in the tank is set appropriately. Overlooking the maintenance of the fill valve can also cause issues, as a malfunctioning valve might result in inadequate refilling, impairing flush effectiveness.

Conclusion

Understanding how a toilet works involves exploring the intricate interactions between its various components and mechanisms. By examining each part of the toilet, from the flush handle and fill valve to the siphon jet and trap, you can gain a comprehensive understanding of its operation. A detailed diagram of the toilet enhances this understanding by providing a visual representation of the components and their functions. Thanks for reading, and we hope this has given you some inspiration on how does a toilet work diagram!
