A toilet wax ring is a simple yet vital component of your bathroom plumbing system. It is designed to create a watertight seal between the toilet’s base and the drain pipe, preventing leaks and keeping unpleasant odors from escaping into your home. Proper installation of this small part is critical to maintaining a hygienic, damage-free bathroom environment. Without it, you risk water leaks that can lead to costly repairs and potential health hazards.
This article provides a comprehensive, step-by-step guide on how to install a toilet wax ring, making the process accessible even to beginners and DIY enthusiasts. Armed with the right tools and techniques, you can confidently replace or install a wax ring, ensuring a long-lasting seal that keeps your bathroom clean, safe, and functional.
Tools and Materials Needed
Materials
- New wax ring (standard or reinforced with flange).
- Toilet bolts and washers (if not reusing old ones).
Tools
- Adjustable wrench or socket wrench.
- Putty knife or scraper (for removing old wax).
- Rubber gloves.
- Sponge or towel.
- Bucket (for any remaining water).
- Utility knife (optional).
- Level (to ensure the toilet is set evenly).
- Cleaning supplies (to sanitize the flange area).
The correct tools and materials are essential for a smooth installation process. A new wax ring, whether standard or reinforced with a flange, ensures a proper seal between the toilet and the drain. If the original bolts and washers are damaged or corroded, replace them with new ones for added stability. Tools like an adjustable wrench or socket wrench will help loosen and tighten bolts effectively.
A putty knife is ideal for removing leftover wax, while gloves and cleaning supplies keep the process sanitary. Additional items like a bucket, sponge, and level ensure precision and cleanliness throughout the task. Preparation with these tools and materials will set you up for success.
Removing the Toilet
Removing the toilet is a key step that requires proper care and attention to avoid damage or unnecessary mess. Follow these steps to remove the toilet effectively:
Step 1: Turn Off the Water Supply
Locate the water shut-off valve near the base of the toilet and turn it clockwise to stop the water flow. Flush the toilet to drain as much water as possible from the tank and bowl. Use a sponge or towels to soak up any remaining water to ensure the area is dry and manageable.
Step 2: Disconnect the Water Line
Using an adjustable wrench or pliers, carefully unscrew the water supply line from the base of the toilet tank. Be prepared with a bucket or towel to catch any residual water that may escape during disconnection. Ensure the supply line is out of the way to prevent interference during the next steps.
Step 3: Remove the Toilet
Next, use a wrench to loosen and remove the nuts and washers securing the toilet to the floor bolts. If the bolts are corroded or stuck, apply gentle pressure with penetrating oil or use a hacksaw if necessary. Once the bolts are removed, gently rock the toilet side to side to break the wax seal at the base.
Lift the toilet straight up and away, keeping it level to avoid spilling any trapped water inside. Place the toilet carefully on its side on an old towel, blanket, or piece of cardboard to protect your flooring.
How to Install a Toilet Wax Ring: Removing the Old Wax Ring
Step 1: Scrape Away Old Wax

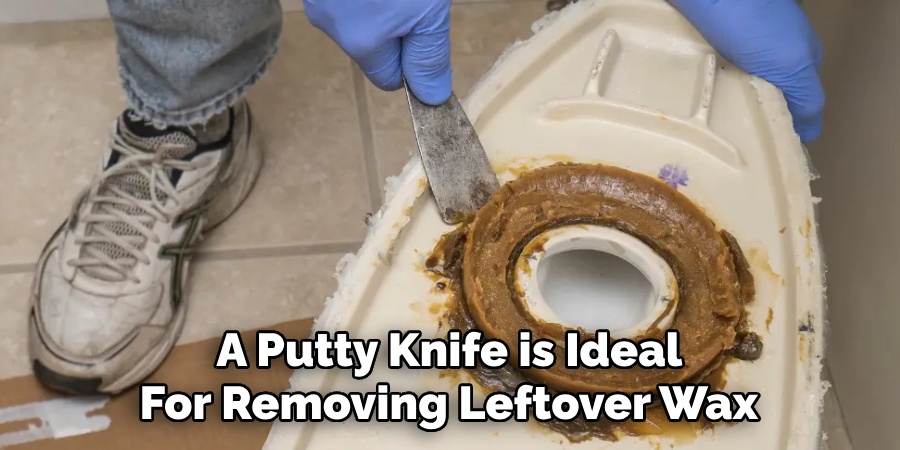

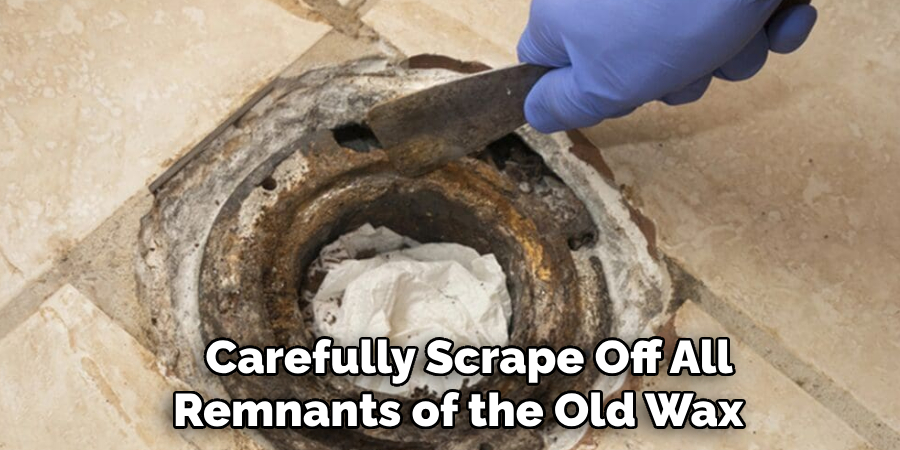

Using a putty knife, carefully scrape off all remnants of the old wax ring from both the flange and the bottom of the toilet. Be thorough in this process to ensure no residue is left behind, as leftover wax can interfere with the proper sealing of the new ring. Dispose of the old wax safely in a plastic bag to avoid a mess.
Step 2: Clean the Flange Area
Once the old wax is fully removed, clean the flange and the surrounding area with a disinfectant or household cleaner. This step ensures a hygienic surface and creates a clean base for the new wax ring to adhere properly. Use a rag or paper towels to dry the area completely.
Step 3: Inspect the Flange
Carefully inspect the flange for any signs of cracks, warping, or damage. A damaged flange may compromise the toilet’s stability and seal. If you notice any issues, consider repairing it using a flange repair kit, which can easily reinforce or replace the damaged parts. Ensure the flange is in good condition before proceeding to avoid future problems.
Positioning the New Wax Ring
Step 1: Choose the Right Wax Ring Type
Selecting the correct wax ring is crucial for a proper seal. For regular installations when the floor and flange are level, use a standard wax ring. Opt for a reinforced or flange-style ring for uneven surfaces or deeper flanges, which provide extra stability and a better seal. Choosing the appropriate type ensures long-lasting performance and helps prevent leaks.
Step 2: Install the Ring
Once the correct wax ring has been selected, proceed with installation. There are two common methods to attach the ring, depending on your preference or manufacturer’s instructions:
- Option A: Press the wax ring directly onto the toilet bowl outlet. Ensure it is firmly secured and evenly distributed to create a proper seal.
- Option B: Place the wax ring centered over the flange on the floor. Verify that the ring is aligned and not distorted before continuing.
Step 3: Align Toilet Bolts

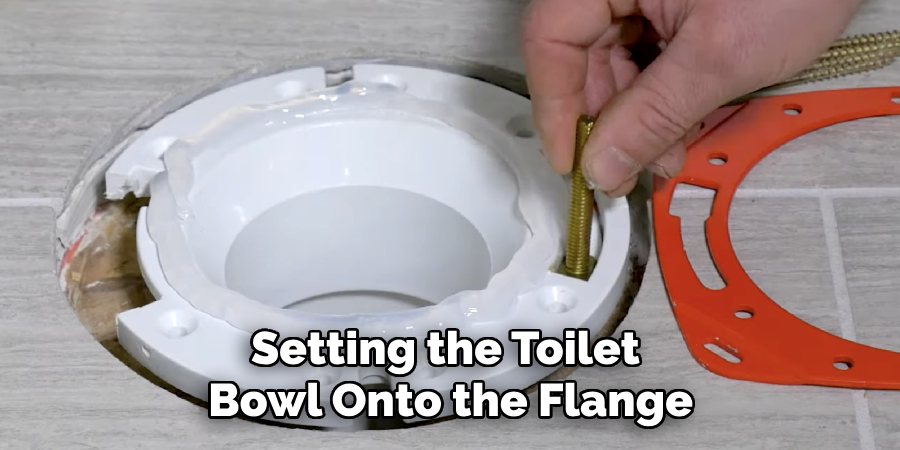

Before setting the toilet bowl onto the flange, confirm that the toilet bolts are properly positioned upright and securely fitted into the flange slots. This step is essential to ensure an even and stable toilet placement. Correctly aligned bolts will make the following steps smoother and help maintain the integrity of the installation.
Reinstalling the Toilet
Step 1: Lower the Toilet
Carefully lift the toilet bowl and align it precisely over the flange and wax ring. Ensure that the holes at the toilet’s base match the bolts in the flange. Once aligned, gently lower the toilet onto the wax ring. It is essential to lower straight down without twisting to maintain the integrity of the seal. Press down firmly and evenly around the toilet’s base to compress the wax ring, creating a watertight seal.
Step 2: Secure the Toilet to the Floor
Once the toilet is seated correctly, washers and nuts are placed on the exposed bolts coming through the base holes. Tighten the nuts gradually and evenly on each side to avoid imbalance. Be cautious not to overtighten; this could crack the porcelain or damage the bolts. Using a wrench, continue tightening until the toilet is snug and stable against the floor.
Step 3: Check for Stability
With the toilet secured, use a level to ensure it is sitting flat and even. If the toilet wobbles or rocks, identify the areas of instability and insert shims as needed between the base of the toilet and the floor. Once the shims are in place, the bolts are tightened to secure the toilet completely. Afterward, trim any excess shim material sticking out for a clean and professional finish.
Reconnecting the Water Supply
Step 1: Reattach the Water Supply Line
Carefully reconnect the water supply line to the fill valve on the toilet tank. Ensure the connection is secure, but avoid overtightening, as this may damage the fitting. Hand-tightening, followed by a slight turn with a wrench, is usually sufficient to create a reliable seal.
Step 2: Turn on the Water and Test
Slowly turn the water valve back on to allow the toilet tank to fill. Keep an eye on the connections and monitor for any leaks from the supply line or around the toilet’s base. Once the tank is full, flush the toilet several times to ensure everything functions correctly and all connections remain watertight. If leaks are detected, turn the water off and recheck the fittings.
Step 3: Final Touches
For a polished finish, trim any excess length from the toilet bolts using a hacksaw if necessary, and cover the bolts with decorative caps. Wipe down the area surrounding the toilet to remove any dust or debris, then dispose of any old parts or packaging materials responsibly. Your toilet installation is now complete!
Conclusion
Learning how to install a toilet wax ring is a manageable task that can save time and money. The key steps include removing the old toilet, thoroughly scraping off the old wax ring, placing the new wax ring securely, carefully reinstalling the toilet, and finally reconnecting the water supply. Ensuring a proper seal is essential to prevent leaks and odors, so take your time to double-check all connections.
With a bit of care, patience, and the right tools, replacing a toilet wax ring can be a straightforward and satisfying DIY project for any homeowner.
