Shower pans are essential for bathroom drainage systems, designed to collect and direct water flow into the drain while preventing leaks and water damage. They play a critical role in ensuring the efficiency and longevity of the shower area. Over time, there may be situations where you need to address issues with the drain, such as repairs, replacements, or remodeling projects.
Learning how to remove drain from shower pan is an important skill that enables homeowners or DIY enthusiasts to manage these tasks without causing further damage. This article will provide a clear, step-by-step guide to safely and effectively remove a shower pan drain, helping you confidently tackle repairs or upgrades. By following these instructions carefully, you can ensure a smooth process and maintain the integrity of your shower system.
Understanding the Shower Pan Drain

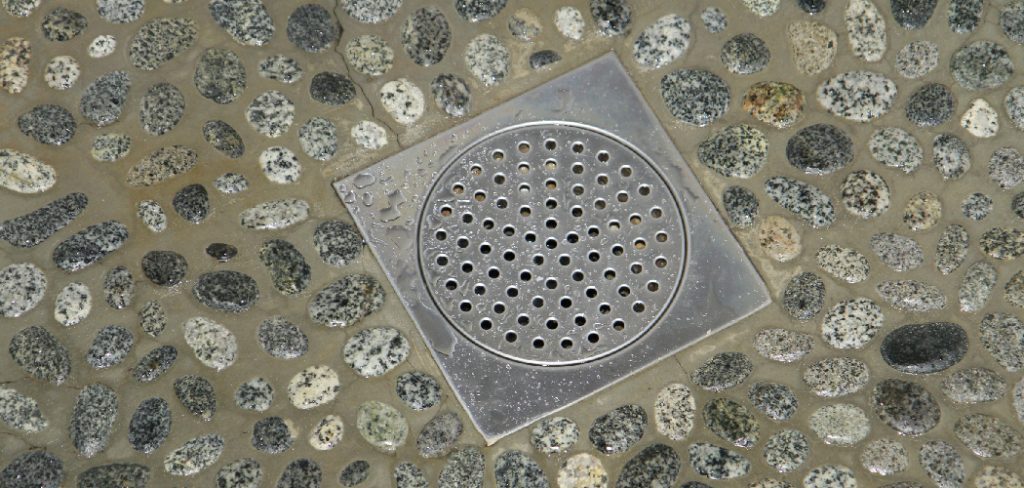

Description of a Shower Pan Drain: Components and How It Connects to Plumbing
A shower pan drain is crucial in guiding wastewater away from your shower and into the plumbing system. It consists of several key components, including the strainer cover, upper flange, lower flange, rubber or fiber gaskets, and sometimes, a locking ring or clamping ring. These components work together to create a watertight seal and ensure proper drainage.
The connection to the plumbing system typically involves a threaded or glued connection to the drain pipe beneath the shower pan, which prevents leaks and maintains efficiency.
Types of Shower Pan Drains
There are several shower pan drains, each with a unique design and installation process. Clamping ring drains are commonly used in tile showers and feature a series of screws to secure the components together. Glued drains, often made of PVC or ABS plastic, rely on a strong adhesive to attach the drain assembly directly to the drain pipe.
Integrated drain systems, frequently found in modern prefabricated shower pans, combine the drain and pan as a single unit, simplifying installation but requiring specific removal techniques.
Importance of Understanding Your Specific Drain Type Before Removal
Before attempting to remove a shower pan drain, it is essential to identify its type to avoid damaging the surrounding materials or plumbing. Each drain type requires a specific removal process, and using the wrong method can compromise the durability of your shower system. By understanding your specific drain type, you can choose the right tools and follow the proper steps, ensuring a safe and successful repair or upgrade.
Tools and Materials Needed
Having the correct tools and materials on hand is crucial when removing a shower pan drain. The right preparation can save time, minimize unexpected complications, and keep the surrounding plumbing system intact.
List of Essential Tools
- Adjustable Wrench – Used for loosening and tightening drain components.
- Screwdriver – Helps with removing screws that secure the drain assembly.
- Pliers – Useful for gripping and turning parts of the drain that require additional leverage.
- Plumber’s Putty – Often needed for sealing components when reinstalling or upgrading the drain.
- Utility Knife – Ideal for cutting away caulking or other sealing materials around the drain.
- Hacksaw – Can be employed to cut stubborn or corroded pipes that may obstruct the removal process.
- Drain Removal Tool – Specifically designed to remove older or specialty drain designs effectively.
Safety Gear
- Gloves – Protect your hands from sharp edges or abrasive materials.
- Safety Goggles – Safeguard your eyes against debris or splashes during the process.
Optional Tools Depending on Drain Type
- Heat Gun – Useful for loosening glue or adhesive holding certain drain setups in place.
- Pipe Wrench – Provides extra leverage for stubborn joints or metal drain components.
- Basin Wrench – Helps access tight spaces and hard-to-reach areas around the drain.
Having these tools and materials ready will help ensure a safer and more efficient drain removal process. Always tailor your approach based on the specific drain type in your shower system.
Preparing the Work Area

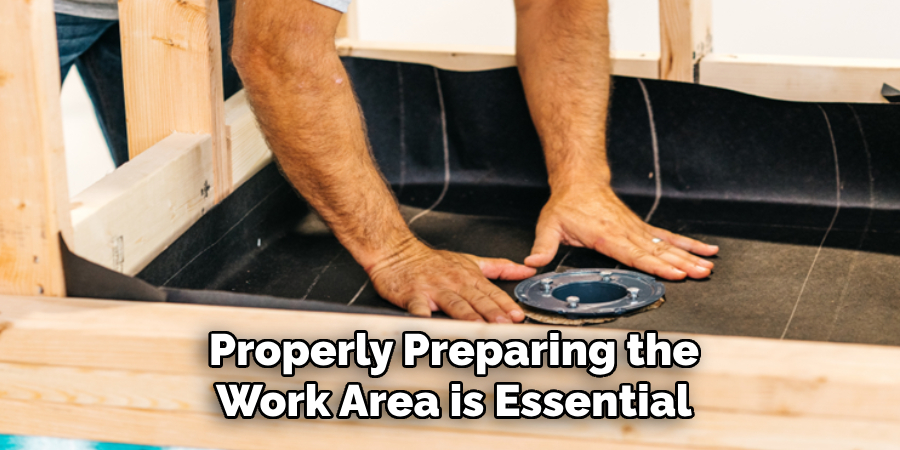

Properly preparing the work area is essential to ensure smooth drain removal and avoid unnecessary damage.
Turning off the Water Supply and Draining Excess Water
Start by turning off the water supply to the shower. This step prevents any accidental water flow while you work. Next, ensure the shower area is completely drained of any standing water. Use a sponge or towel to soak up remaining moisture for a dry and safe workspace.
Removing Any Fixtures or Shower Doors
If any fixtures, such as shower doors or panels, obstruct access to the drain, carefully remove them. Follow the manufacturer’s instructions or use appropriate tools to avoid damage. Clearing the workspace allows you to work more efficiently and reduces the risk of accidental breakage.
Protecting the Surrounding Floor and Walls
Place protective coverings, such as drop cloths or thick towels, over the floor and walls near the work area. This precaution helps shield surfaces from scratches, water spills, or debris. Protecting the surroundings ensures a clean and damage-free outcome.
How to Remove Drain From Shower Pan: Step-by-Step Process
Step 1: Remove the Drain Cover or Strainer
Begin by taking off the drain cover or strainer. Typically, this requires using a screwdriver or wrench to unscrew and remove it carefully. Set the cover aside safely to ensure it is not lost or damaged during the process. Removing this component provides access to the drain assembly below.
Step 2: Loosen the Drain Clamping Ring or Retaining Nut
Next, locate the clamping ring or retaining nut that secures the drain flange. This part is often visible just beneath the drain cover you removed in the previous step. Loosen the clamping ring or unscrew the retaining nut using a wrench or pliers. Be cautious and apply steady pressure to avoid damaging surrounding components.
Step 3: Breaking the Seal

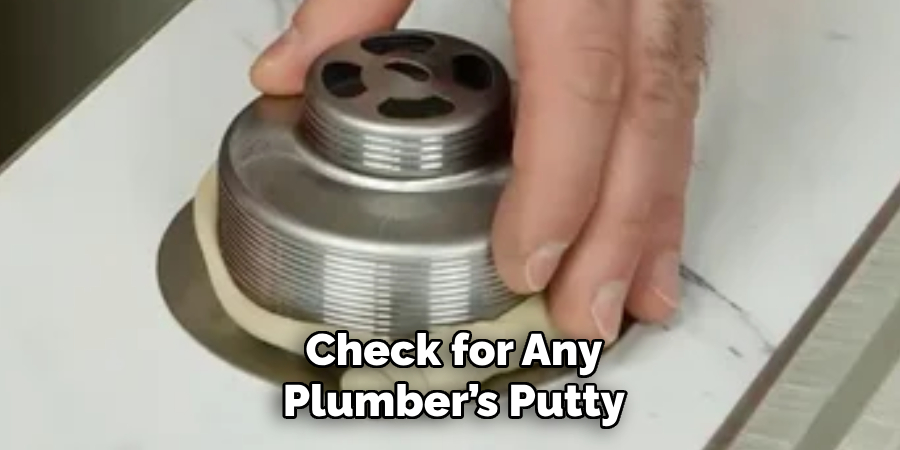

Once the retaining components have been removed, check for any plumber’s putty or sealant securing the drain flange to the shower pan. Use a utility knife or putty knife to cut around the flange, gently breaking the seal. Take care not to gouge or damage the shower pan surface while loosening the sealant.
Step 4: Removing the Drain Flange
With the seal broken, work on unscrewing or prying the drain flange out of its position. Depending on the installation, you may need to use pliers or a flathead screwdriver to lift it free. Applying heat with a heat gun for glued connections can help soften the adhesive and make it easier to remove the flange. Go slowly to avoid cracking or deforming the shower pan.
Step 5: Disconnecting from the Drain Pipe
Finally, detach the drain assembly from the plumbing below. This step may require a pipe wrench to loosen and remove any remaining connections. Be mindful of the pipe’s positioning and don’t strip or damage the threads. Once the drainage components are fully detached, inspect the area for any residual debris or damage before moving forward with repairs or replacements.
Dealing with Common Challenges
Stubborn or Corroded Drains
Encountering rusted or stuck drain components is a common challenge during removal. To address this, apply penetrating oil around the stubborn areas to break down rust and corrosion. Allow the oil to sit for several minutes before loosening the components again. If this method fails, applying heat can be an effective alternative.
Use a heat gun or blow dryer to gently warm the metal parts, which causes slight expansion and can make them easier to remove. Avoid overheating areas near plastic or sensitive materials to prevent unintended damage.
Damaged Shower Pan or Drain Pipe
Damage to the shower pan or drain pipe may become apparent during the removal process. Cracks, chips, or punctures in the shower pan can compromise its integrity and lead to leaks. If damage is identified, use a waterproof repair sealant as a temporary measure to prevent further issues until a replacement can be installed. For drain pipes, check for visible cracks or worn threads.
Pipe joint compound or plumber’s tape can serve as a short-term fix to seal small leaks or enhance thread engagement. However, serious damage often necessitates immediate part replacement to ensure proper functionality.
Handling Different Drain Types

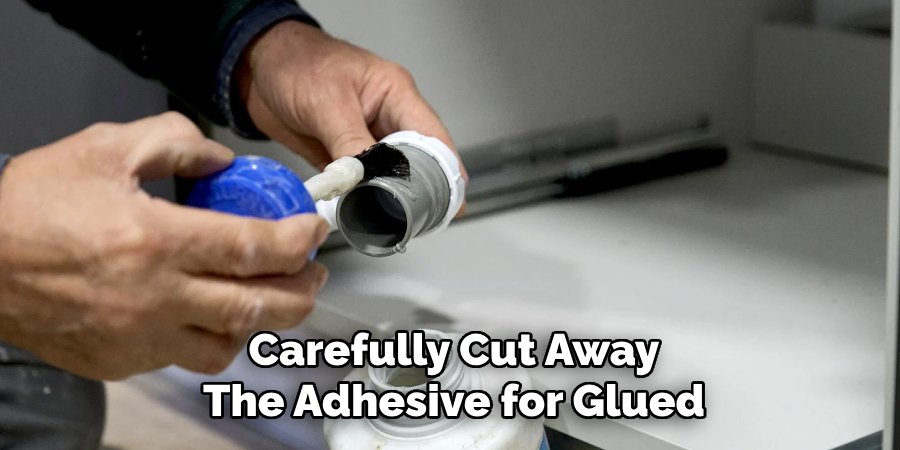

Different types of drains, such as glued, clamped, or integrated systems, require specialized techniques during removal. Carefully cut away the adhesive for glued drains using a utility knife or specialized cutting tool. Clamped drains generally involve unscrewing and separating flange components, and retaining the hardware for reattachment is vital.
Integrated drains, often found in modern systems, may require consulting the manufacturer’s instructions for dismantling procedures, as these designs vary greatly in assembly. Understanding the type of drain system ahead of time can help you prepare with the necessary tools and reduce potential complications.
Cleaning Up After Drain Removal
Removing Leftover Plumber’s Putty, Sealant, or Debris From the Shower Pan
After removing the drain, thoroughly clean the shower pan to ensure a smooth and secure surface for future use. Use a plastic scraper or a soft-bristled brush to remove any remaining plumber’s putty, sealant, or debris. Avoid using abrasive tools that could scratch or damage the surface. For stubborn residue, a mild cleaning solution or rubbing alcohol may help dissolve remnants effectively. Be sure to rinse the area with warm water and wipe it dry once cleaned.
Inspecting the Drain Opening and Surrounding Area for Damage
Carefully inspect the drain opening and the surrounding area for signs of wear, cracks, or other damage. Look out for corrosion in metal components or structural issues in the shower pan itself. Addressing these problems early can prevent future leaks or complications. If minor issues are detected, consider applying a patch or repair solution.
Preparing the Area for Drain Replacement or Repair
Once the area has been thoroughly cleaned and inspected, ensure it is completely dry before proceeding. Gather all necessary tools and materials for the replacement or repair process. Depending on the type of drain system, you may need to apply a fresh layer of sealant or plumber’s putty to create a watertight seal. Follow the manufacturer’s instructions for preparation and ensure a clean, flat surface to achieve optimal results during reinstallation.
Tips and Safety Precautions
When working on drain replacement or repair, always prioritize safety and proper technique to ensure the best results. Wear protective gear, such as gloves and safety goggles, to avoid injuries from sharp tools or debris. Take your time during the process to prevent accidental damage to the shower pan or surrounding materials, as repairs to these components can be costly.

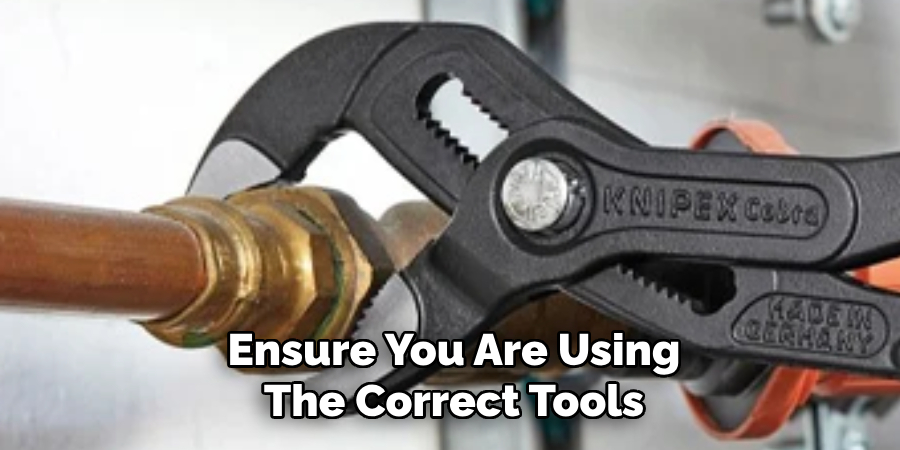

Ensure you are using the correct tools for your specific drain type; using improper tools can lead to complications or an incomplete seal. If you find the work too challenging or the issue persists after your efforts, it is wise to call a professional plumber. Experienced plumbers can resolve complex problems efficiently, saving you time, effort, and potential frustration. Safety and precision are crucial for a successful drain repair or replacement.
Conclusion
Understanding how to remove drain from shower pan systems safely and efficiently is essential for successful shower repairs or remodels. You can prevent unnecessary complications by following the outlined steps carefully, using the correct tools, and taking your time.
Ensure you prioritize safety, precision, and patience throughout the process to achieve the best results. Should you encounter any challenges or feel uncertain, don’t hesitate to seek help from a professional plumber. Proper drain removal ensures long-term functionality and sets a solid foundation for future shower upgrades or repairs.
