Are you tired of your toilet’s constant running or hissing sound? Your fill valve may be malfunctioning and needs to be replaced.
Replacing a toilet fill valve is a straightforward home repair task that can save you time, money, and the hassle of calling a plumber. The fill valve is a critical component of your toilet’s tank, controlling water flow into the tank and ensuring it refills properly after every flush. Over time, fill valves can wear out, leading to issues like constant running water, slow refilling, or even strange noises. With basic tools and a bit of patience, you can replace a faulty fill valve yourself and restore your toilet to proper working order.
This guide on how to replace a toilet fill valve will walk you through the steps to complete the replacement safely and efficiently.
What Are the Benefits of Replacing a Toilet Fill Valve?
Replacing your toilet fill valve has several benefits, including:
- Improved Water Efficiency: A faulty fill valve can lead to wasted water due to constant running or slow refilling. You can help conserve water and save on your utility bills by replacing it.
- Better Flushing Performance: When the fill valve isn’t working correctly, it can affect the amount of water in the tank and the flushing power. Replacing it will ensure that your toilet flushes effectively every time.
- Cost Savings: Hiring a plumber to replace a toilet fill valve can be expensive. You can do it with some basic tools and DIY skills for a fraction of the cost. Plus, a new fill valve can help you save on water bills over time.
- Easy to Install: Replacing a toilet fill valve may seem intimidating, but it’s actually a straightforward process. Most home improvement stores sell universal replacement valves that can fit any toilet.
What Will You Need?
Before you begin, gather all the necessary materials and tools. These may include:
- Universal toilet fill valve
- Adjustable pliers
- Bucket or towel
- Screwdriver
- Scissors
Once you have everything ready, follow these steps to replace your toilet fill valve.
10 Easy Steps on How to Replace a Toilet Fill Valve
Step 1. Turn Off the Water Supply

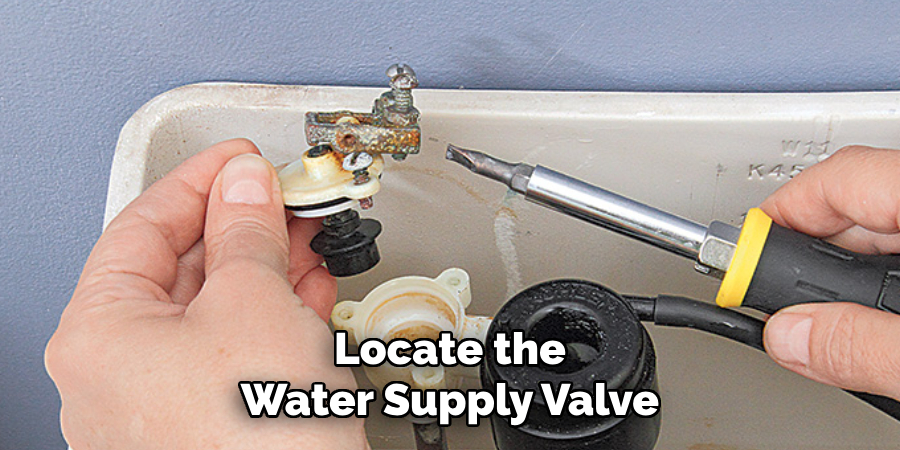

Locate the water supply valve on the wall behind or near the toilet’s base. Turn the valve clockwise to shut off the water flow completely. This step is crucial to avoid water spilling or flooding during replacement. After shutting off the valve, flush the toilet to drain as much water as possible from the tank. Use a sponge, towel, or small bucket to remove any remaining water from the tank to ensure it is dry. Taking the time to empty the tank thoroughly will make the process cleaner and easier.
Step 2. Disconnect the Water Supply Line
Locate the water supply line, which is typically connected to the bottom of the toilet tank. Using an adjustable wrench or your hand, carefully loosen the nut that secures the hose to the tank. Be prepared for a small amount of water to drip out, so have a towel or bucket handy to catch any excess water. Once the nut is entirely loosened, gently detach the supply line from the tank. Inspect the hose and fittings for any signs of wear or damage, and set the supply line aside for reattachment later. Ensure the area is dry and clear before proceeding to the next step.
Step 3. Remove the Old Fill Valve
With the supply line removed, locate the fill valve inside the tank. The fill valve is typically secured to the tank by a locking nut on the underside of the tank. Using an adjustable wrench, carefully loosen and remove this nut while stabilizing the valve from above to prevent it from moving. Once the nut is removed, lift the old fill valve out of the tank. Be cautious of any remaining water in the valve or tank and clean up spills promptly. Inspect the area where the fill valve was installed, ensuring there is no debris or residue that could interfere with the new valve.
Step 4. Prepare the New Fill Valve

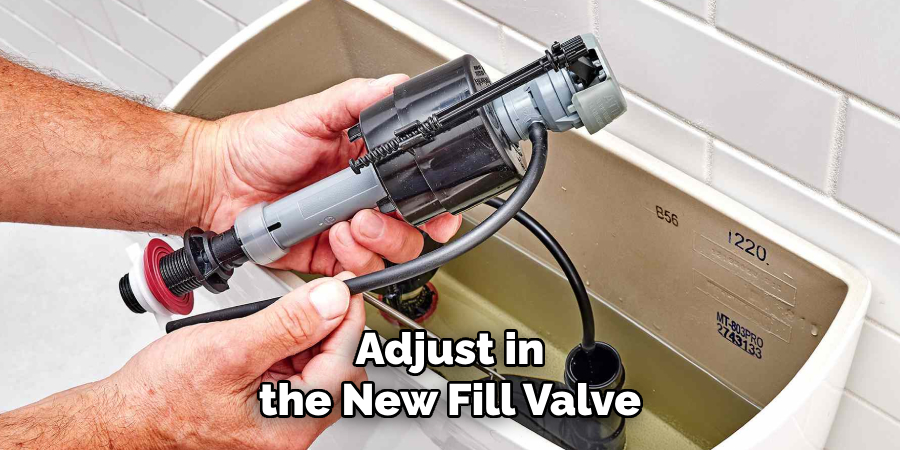

Begin by adjusting the new fill valve to match the height of your toilet tank. Most fill valves come with an adjustable shaft; simply twist or extend it per the manufacturer’s instructions until it aligns appropriately with the tank’s height. Next, attach the rubber washer or gasket to the base of the fill valve, ensuring it is firmly in place to prevent leaks. Before installing, double-check that all components included with the fill valve kit are present and in good condition. This preparation ensures a smooth and secure installation process in the upcoming steps.
Step 5. Install the New Fill Valve
Position the new fill valve inside the tank, ensuring the shank extends through the hole at the bottom. Secure it by threading the mounting nut onto the shank from the underside of the tank. Hand-tighten the nut to ensure it’s secure, but avoid over-tightening, as this could potentially damage the tank. Once firmly in place, connect the refill tube from the valve to the overflow pipe. Adjust the valve height or float, if necessary, to match the water level indicated inside the tank. Double-check all connections for stability and alignment before proceeding.
Step 6. Reconnect the Water Supply Line
Turn the water supply valve back on by twisting it counterclockwise. Allow water to flow into the tank and carefully inspect for any leaks around the connections. If leaks are found, gently tighten the connections without over-tightening. Once the tank has filled, check the water level to ensure it aligns with the marked fill line inside the tank. Adjust the water level if needed by modifying the float or valve per the manufacturer’s instructions. Finally, flush the toilet a few times to ensure proper operation and that all components function correctly.
Step 7. Attach the Refill Tube
Take the refill tube and connect one end to the fill valve nipple, ensuring it is securely fastened. The other end of the tube should be positioned above the overflow pipe within the tank. Some refill tubes may require a clip to keep them in place; use the clip if provided to prevent the tube from dropping into the overflow pipe. Ensure the tube is not kinked or twisted, as this can restrict water flow. Once attached, test the setup by flushing the toilet to confirm water flows correctly through the refill tube into the overflow pipe.
Step 8. Turn On the Water Supply
Slowly turn the water supply valve back on to allow water to flow into the tank. Keep an eye on the water level as it fills to ensure no leaks and that the water stops at the set level. If the water rises beyond the fill line, adjust the fill valve to regulate the water level. Test the toilet by flushing it a few times to verify that all components function correctly and that the refill process is smooth and efficient. Make any necessary adjustments to achieve optimal performance.
Step 9. Adjust the Water Level

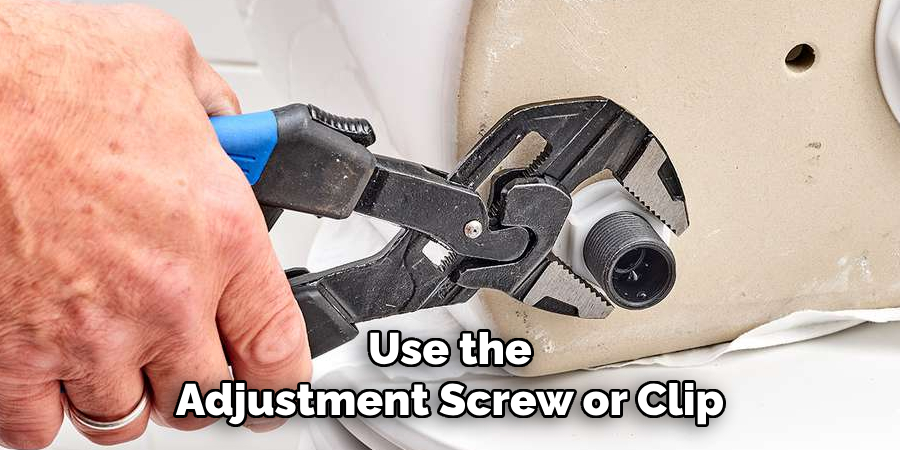

To ensure optimal performance, the water level in the tank must be set to the manufacturer’s recommended height, typically marked inside the tank. Use the adjustment screw or clip on the fill valve to raise or lower the water level as needed. Turn the adjustment screw clockwise to reduce the level or counterclockwise to raise it. After making adjustments, flush the toilet and observe the water level to confirm that it aligns with the designated mark. Proper adjustment helps conserve water and ensures efficient flushing without causing overflow or inadequate fill levels.
Step 10. Test the Flush

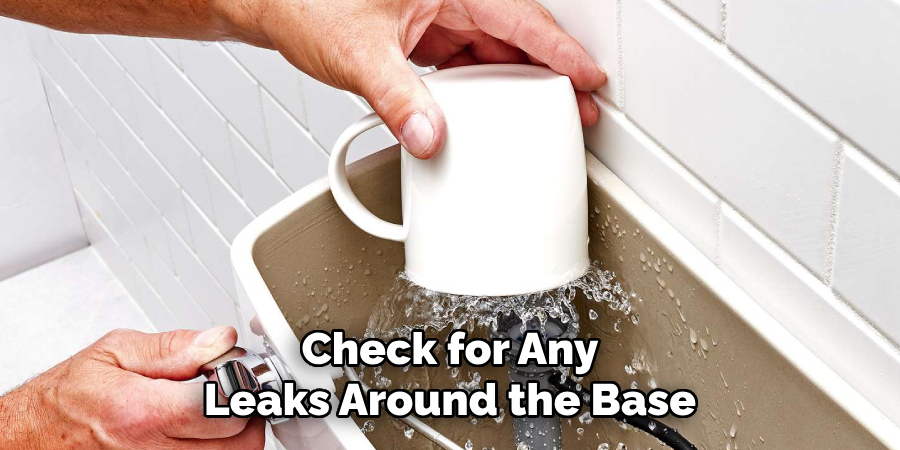

Flush the toilet to verify that it operates correctly. Observe the water flow, ensure the flush is strong, and that it effectively clears the bowl. Check for any leaks around the base, tank, or connections. Additionally, confirm that the tank refills to the appropriate water level immediately. If any issues arise, revisit the previous steps to make adjustments as necessary. Properly testing the flush ensures that your toilet is functioning efficiently and reliably.
By following these steps, you’ll have effectively and efficiently replaced your toilet fill valve, saving time and the expense of hiring a professional!
5 Things You Should Avoid
- Skipping the Water Shut-off Step
Never begin work on the fill valve without shutting off the water supply. Failure to do so can lead to uncontrolled water flow, resulting in a significant mess and potential damage to your bathroom.
- Not Draining the Tank Completely
Avoid leaving water in the tank before removing the old fill valve. Residual water can spill out onto your floor, complicating the process and creating a slippery hazard.
- Forgetting to Inspect the Seal and Washer
When installing the new fill valve, pay attention to the seal and washer. A worn or improperly fitted seal may cause leaks and reduce the toilet’s efficiency.
- Overtightening Connections
Be cautious not to overtighten nuts and connections. This can damage the fill valve or the threads, leading to potential leaks or even breakage.
- Skipping the Final Test
Always avoid skipping the final testing step after installation. Ensuring the valve functions correctly and the tank refills to the right level is crucial to confirm a job well done.
Conclusion
How to replace a toilet fill valve is a straightforward task that can save both time and money by avoiding the need for professional assistance.
With careful preparation, attention to detail, and proper execution of each step, you can successfully restore your toilet’s functionality. Always turn off the water supply, follow the manufacturer’s instructions, and double-check for any leaks or issues after installation.
By following these steps, you can ensure your toilet operates efficiently and effectively for years to come.
