Waterproofing a shower is a foundational step in bathroom renovations and new builds, and it should never be overlooked. Bathrooms experience constant moisture exposure, and without the right protective measures, this moisture can seep into walls and subfloors, causing damage over time. Left unchecked, water infiltration leads not only to unsightly stains and tile or grout deterioration but also to serious issues like mold growth and costly structural repairs. By ensuring that your shower is fully waterproofed, you extend the life of your bathroom, maintain household hygiene, and help preserve your home’s value.
Whether you’re remodeling your bathroom or constructing a new one, learning how to waterproof a shower will provide peace of mind knowing you’ve created a durable barrier against water intrusion. In this detailed guide, you’ll discover a step-by-step approach to proper shower waterproofing—from preparing the workspace to choosing the right membranes and sealing every critical joint. With thorough guidance and actionable tips, this article will empower you to take on the project with confidence, ensuring your new or refreshed shower is both beautiful and built to last.
Understanding the Basics of Shower Waterproofing
Before diving into the process, it’s important to grasp the basics of what shower waterproofing entails. Many homeowners are surprised by how much damage a single leak can cause; that’s why investing time and effort into waterproofing pays off.
What is Shower Waterproofing?
At its core, shower waterproofing is the process of applying protective barriers that prevent water from penetrating into your bathroom’s substructure. These barriers come in various forms, including liquid-applied membranes, sheet membranes, and specialized tapes. The goal is to completely seal any area that may see water exposure—not just the surfaces you can see, but also beneath tiles, around drains, and in corners where water is most likely to pool.
Waterproofing materials bond to the underlying surfaces, blocking water from seeping through small cracks or porous grout. Depending on the method chosen, you may achieve this with sheets pressed into place, liquids painted on, or preformed tape strips spanning gaps. Understanding this foundation prepares you to select the best system for your project, ensuring long-term protection.
Common Problems Without Waterproofing
Neglecting to waterproof your shower can lead to a variety of problems, many of which start small and then accelerate. Water leaks, for instance, may at first cause loose tiles or stained grout, but as moisture accumulates behind walls or beneath floors, mold and mildew can flourish. Over time, wood rot may set in, deteriorating structural supports and causing significant damage that’s both hard to detect and expensive to fix. Ensuring your shower is properly waterproofed is, therefore, one of the most effective ways to safeguard your bathroom investment.
Preparing Your Shower Area
A successful waterproofing job begins with careful preparation. Rushing through this stage can compromise the adhesion and effectiveness of the waterproofing materials, so take your time here.
Cleaning and Inspecting the Shower Space
Start by clearing out all surfaces in your shower area. Remove dust, soap scum, debris, and any residues that could prevent waterproof materials from bonding well. An abrasive pad or brush and mild detergent work well for cleaning tiles and walls. If you’re working in a remodel, remove any old sealant or loose grout.
Next, thoroughly inspect the area for damage. Are there cracks in the mortar or tile? Any signs of existing water damage, such as dark spots or crumbling drywall? These should be addressed now—seal cracks with an appropriate filler and repair or replace damaged drywall or cement board before proceeding.
Gathering Necessary Tools and Materials
Gathering all your tools and supplies beforehand will streamline the process. You’ll need a waterproofing membrane (either sheet or liquid, depending on your preferred method), a caulk gun and waterproof caulk or sealant, high-quality brushes or rollers for liquid application, a notched trowel for adhesive (if using sheets), waterproof tape for seams, a utility knife or scissors for trimming, and enough gloves and rags to keep your hands and workspace clean. Having everything handy reduces interruptions and promotes smoother progress once you start applying materials.
Selecting the Right Waterproofing Method
Choosing the right approach is crucial, as different showers and subfloor conditions may call for different materials or installation techniques.
Liquid Membranes vs. Sheet Membranes
The two most popular types of shower waterproofing are liquid-applied membranes and sheet membranes.
Liquid membranes are brushed, rolled, or sprayed onto surfaces much like paint. They’re ideal for irregularly shaped showers as they can fill in gaps and cover tight corners with ease. Once dried, they create a seamless, flexible barrier that resists cracking.
Sheet membranes, on the other hand, come in rolls that are cut to fit. These are often made from polyethylene or similar materials. They’re adhered to surfaces with thinset mortar or another recommended adhesive, forming a robust, continuous barrier. Sheets excel at bridging gaps and are less likely to suffer from installation errors, as their thickness is pre-determined.
Factors to Consider
When deciding between these two, consider the condition of your walls and subfloors, your own DIY skill level, and the tools you have on hand. Sheets are excellent for preventing errors that might occur if too thin a layer of liquid is applied, but can be trickier around obstacles. Liquid membranes, while more forgiving in tight spaces, require careful application for even coverage. Take into account cost, longevity, manufacturer recommendations, and the specific requirements of your shower design.
How to Waterproof a Shower: Applying Waterproof Membranes
Proper installation of membranes is the most critical step in ensuring your shower remains waterproof for years to come.
Installing Sheet Membranes

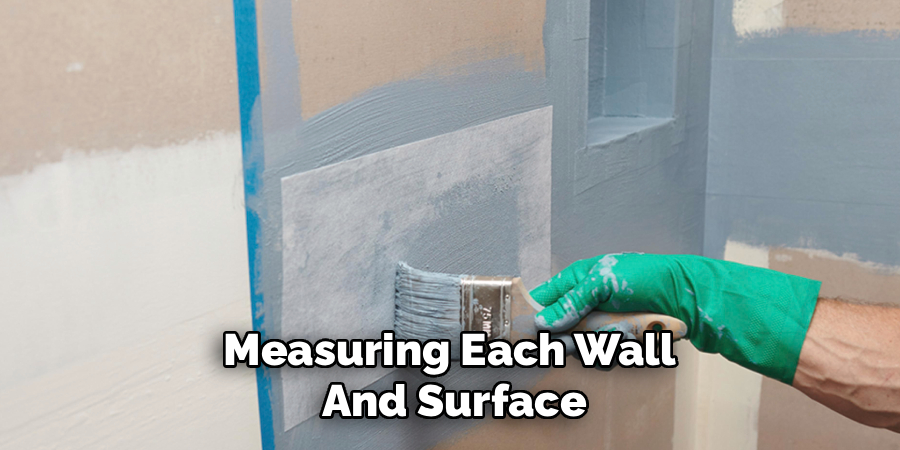

Begin by measuring each wall and surface, then cut the sheets to size, leaving some extra width to overlap in corners and at joints. Apply a layer of thinset mortar to the surface using a notched trowel, working one section at a time to prevent the mortar from drying before you can attach the sheet. Carefully press the sheet membrane into the mortar, smoothing out any wrinkles or bubbles with a trowel or roller; these could become pathways for leaks later. Overlap edges by at least two inches and use waterproofing tape for extra reinforcement at seams and corners.
Applying Liquid Membranes
For liquid systems, use a brush or roller to apply an even coat over all surfaces, paying particular attention to corners, seams, and screw holes. Always follow the manufacturer’s guidelines on recommended thickness and required number of coats. Generally, let the first coat dry fully before applying the second. Maintain consistent coverage, as thin areas are vulnerable to leaks. Don’t forget to coat any shelves, niches, or ledges within the shower area as well.
Sealing Joints and Corners
Joints and corners are especially vulnerable, as even the smallest gap can allow water to penetrate. Diligent sealing here makes all the difference.
Using Waterproof Tape
Waterproofing tapes are designed to reinforce corners, seams, and joints between different materials. After laying your primary membrane, press the tape firmly into any corners and over seam lines. Use a putty knife or roller to ensure the tape is fully sealed and free from air pockets.
Ensuring a Secure and Tight Seal
Once the tape is applied, inspect it closely. Look for any raised edges, gaps, or areas where the tape may have pulled away from the wall. Patch these areas immediately with additional tape or a small brush-on application of liquid membrane if necessary. Make sure every potential leak path is securely covered—attention to these details greatly increases the long-term success of your waterproofing project.

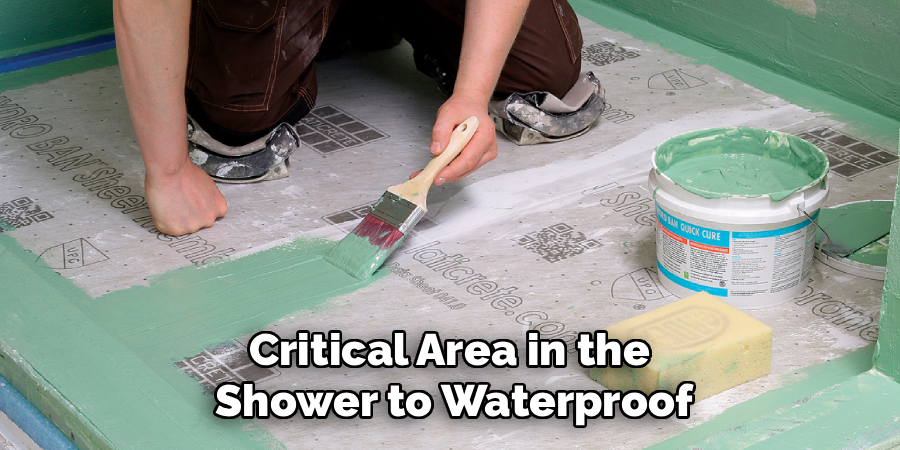

Waterproofing the Shower Floor
The floor is the most critical area in the shower to waterproof, as water naturally flows here and can pool or seep through grout lines.
Preparing the Floor for Waterproofing
First, ensure there is an appropriate slope (typically 1/4 inch per foot directed toward the drain) so water does not puddle. Use a level to verify the slope, and if adjustments are needed, apply a sloped mortar bed and allow it to fully cure before proceeding.
Clean the floor thoroughly and apply a primer if recommended by your chosen waterproofing product. Remove all dust, chips, and grease to ensure the membrane adheres properly.
Applying Membranes to the Floor
If using a sheet membrane, begin at the drain and work outward. Cut a hole to fit snugly around the drain, then extend sheets across the entire floor, overlapping seams by at least two inches. Seal those overlaps and edges against the wall with waterproofing tape. For liquid membranes, start at the corners and move outward, applying at least two coats and allowing ample drying time between each. Don’t forget to seal around the drain fitting thoroughly—this is a common weak spot if not properly attended to.
Testing the Waterproofing
Once the waterproofing is finished, testing is critical before progressing to tiling or additional build-out.

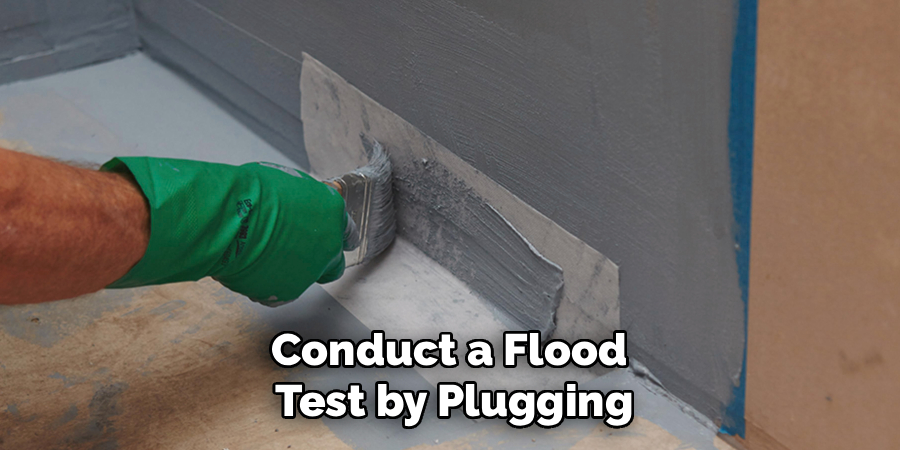

Conduct a flood test by plugging the drain and filling the pan with water to a predetermined line (usually about one inch high). Leave it overnight or for at least 24 hours. After the testing period, check for any visible water drops, changes in water level, or signs of dampness around the base. If leaks are found, pinpoint their location, dry the area thoroughly, and apply additional membrane or sealant before retesting. This step ensures that how to waterproof a shower is not just theoretical, but verifiable in your own space.
Finishing and Preparing for Tiling
If the test is a success and no leaks are detected, you’re ready for the final waterproofing touches.
Give the membrane ample time to fully cure, according to the product instructions—rushing this step can compromise adhesion and functionality. Inspect every seam and corner one last time. Once satisfied, you can begin the process of applying tile adhesive or mortar and setting your tiles. Ensure the surface is completely clean and dry before applying adhesives, so the tiles bond securely to the protected substrate. Check the manufacturer’s guidelines to ensure compatibility.
Maintenance to Ensure Long-Term Waterproofing
After your shower is installed, ongoing maintenance helps preserve the effectiveness of your waterproofing.
Inspect caulk lines, grout, and corners on a regular basis, looking for cracks or gaps that could allow moisture intrusion. At the first sign of trouble—such as loose tiles, deteriorating grout, or stains—address repairs promptly. If areas exposed to heavy use begin to show wear, consider reapplying a sealant or touch-up membrane to reinforce their barrier properties. Good ventilation after every shower also helps minimize condensation and prolong the lifespan of your waterproofing layers.
Conclusion
Understanding how to waterproof a shower is essential for any homeowner looking to protect their bathroom investment and prevent costly water damage repairs. With the right strategy, careful preparation, and attention to detail at every step—from choosing the correct method to sealing every corner and joint—you can create a shower that not only looks great but also offers long-lasting protection against moisture. Remember, successful waterproofing isn’t just about installation—it’s about ongoing vigilance and maintenance. With the guidance from this article, you’re now prepared to tackle the process confidently, ensuring a safe, hygienic, and waterproof bathroom for years to come.
