Removing an old toilet flange is an essential step in many bathroom renovation or repair projects. Whether you’re replacing a damaged flange or upgrading your toilet, understanding the process is key to ensuring a secure and functional installation. This guide will walk you through the process of how to remove old toilet flange.
When to Remove a Toilet Flange
There are several scenarios where removing a toilet flange becomes necessary. One common reason is when the flange is broken, cracked, or otherwise damaged, as this can compromise the stability and proper function of your toilet. Another situation is during a bathroom remodel, where replacing the flange may be needed to accommodate a new toilet or changes to the flooring.
Additionally, if there are persistent leaks around the base of the toilet or signs of water damage, the flange might need replacement to resolve the issue. Lastly, upgrading to a more modern or compatible plumbing system could also require removing the old toilet flange. Understanding when to remove a toilet flange ensures the longevity and reliability of your toilet installation.
Tools and Supplies Needed
Removing and replacing a toilet flange requires the right tools and supplies to ensure the job is done efficiently and effectively. Here’s a list of essentials you’ll need:
- Adjustable wrench – For disconnecting the water supply line.
- Screwdriver set – To remove screws securing the toilet or flange.
- Utility knife – For cutting away caulk or sealants.
- Putty knife – To scrape off wax residue and clean the flange area.
- Wax ring or rubber seal – To create a watertight seal during reinstallation.
- Replacement toilet flange – If the old flange is damaged or incompatible.
- Pry bar – To lift stubborn or old toilet flanges.
- Bucket and sponge – For clearing any residual water from the base of the toilet or flange area.
- Safety gloves – To protect your hands from grime and sharp edges.
- Plumber’s tape – For securing and sealing water connections.
- Power drill (optional) – For installing screws more efficiently in the new flange.
Having these tools and supplies ready will help streamline the process, making it easier to remove the old flange and install a new one correctly.
10 Methods How to Remove Old Toilet Flange
1. Preparing the Area and Gathering Tools
Before removing the old toilet flange, it’s crucial to prepare the area and gather the necessary tools. Turn off the water supply to the toilet by closing the shutoff valve located behind the toilet. Flush the toilet to empty the tank and bowl. Use a sponge or shop vac to remove any remaining water.

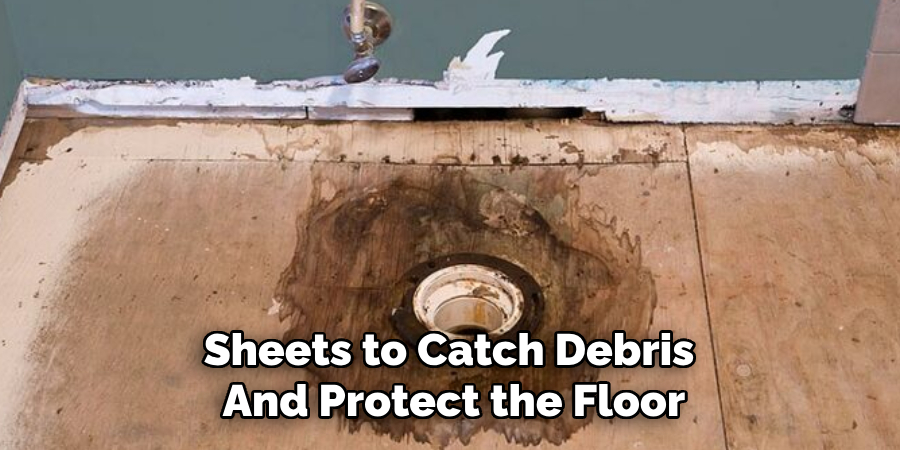

Gather tools such as an adjustable wrench, screwdriver, pry bar, putty knife, reciprocating saw, and safety gear (gloves and goggles). Having all the tools ready saves time and ensures you won’t be scrambling mid-project. Preparing the area also involves laying down towels or plastic sheets to catch debris and protect the floor.
2. Removing the Toilet
To gain access to the flange, you need to remove the toilet. Start by unscrewing the bolts on either side of the toilet base. If the bolts are corroded or stuck, use penetrating oil to loosen them. Carefully rock the toilet back and forth to break the wax seal.
Lift the toilet straight up and set it on a towel or plastic sheet to avoid damaging the floor. Placing the toilet carefully helps prevent cracking the porcelain or damaging the floor surface. With the toilet out of the way, cover the exposed drain with a rag to block sewer gases.
3. Scraping Off the Old Wax Ring
Once the toilet is removed, you will see the old wax ring around the flange. Use a putty knife to scrape off the remaining wax and any debris stuck to the flange and the drain pipe.
Removing the old wax ring thoroughly ensures that the new seal will be watertight. Any leftover residue can interfere with the proper seating of the new flange, leading to leaks. Be diligent and scrape until the surface is clean and smooth.
4. Removing the Flange Bolts
The next step is to remove the flange bolts. Typically, these bolts are secured to the flange with nuts and washers. Use an adjustable wrench to loosen the nuts. If the bolts are stuck or rusted, apply penetrating oil and give it a few minutes to work.
If the bolts still don’t budge, use a hacksaw or reciprocating saw to carefully cut through them. Removing the flange bolts is essential, as they anchor the toilet to the flange and must be replaced when installing a new flange.
5. Inspecting the Flange Condition
Before proceeding to remove the flange itself, inspect its condition carefully. Some flanges are made of PVC, while older ones may be cast iron. Check for visible cracks, rust, or corrosion. Identifying the material and the extent of damage helps you choose the most appropriate removal method.

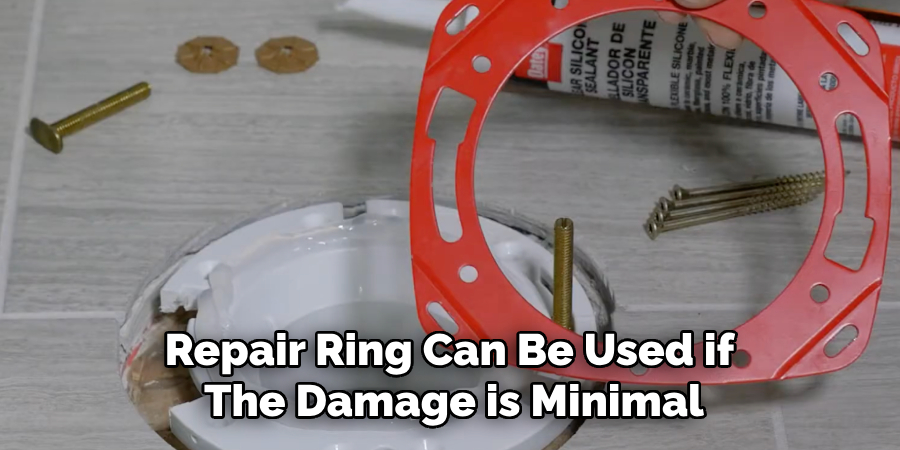

If the flange is severely corroded or broken, replacing the entire unit is essential. In some cases, a repair ring can be used if the damage is minimal. Knowing the flange material will also guide you in selecting the correct tools for removal.
6. Removing a PVC Flange
PVC flanges are typically glued to the drain pipe. To remove one, use a reciprocating saw to carefully cut through the flange without damaging the pipe. Make two cuts opposite each other, and then use a pry bar to lift the flange pieces out.
If the flange is solvent-welded, use a heat gun to soften the PVC and break the bond. Be cautious with the heat to avoid deforming the drain pipe. Once the flange is removed, clean the pipe edge thoroughly to prepare it for the new installation.
7. Removing a Cast Iron Flange
Removing a cast iron flange requires more effort. Start by chiseling around the flange to loosen the lead and oakum seal. Use a cold chisel and hammer to break the old flange piece by piece.
If the flange is attached with screws, remove them first. In some cases, the flange may be bolted to the floor, requiring you to cut the bolts with a reciprocating saw. Cast iron flanges can be stubborn, but persistence and the right tools will eventually get the job done.
8. Using a Flange Removal Tool

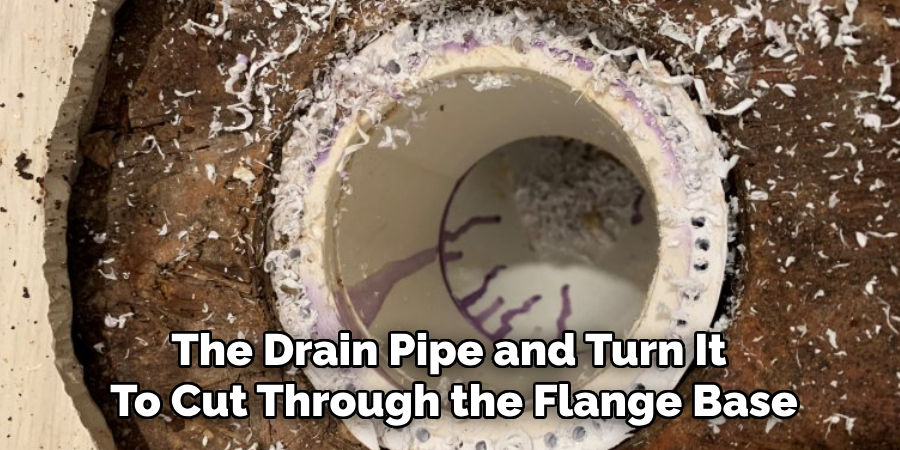

A flange removal tool, also known as an internal pipe cutter, can be a lifesaver when dealing with stubborn or well-secured flanges. Insert the tool into the drain pipe and turn it to cut through the flange base.
This tool is particularly useful when the flange is set in concrete or glued firmly to PVC. Once the cutting is complete, use pliers to pull out the flange remnants. Investing in this specialized tool makes the removal process significantly easier and cleaner.
9. Cleaning the Drain Pipe Opening
Once the flange is removed, thoroughly clean the drain pipe opening. Use a wire brush or a pipe cleaning tool to remove any residual rust, dirt, or old sealant.
Inspect the pipe for any damage, especially if it’s made of older cast iron. Cleaning the pipe ensures that the new flange will fit properly and seal effectively. If the pipe shows signs of corrosion or cracks, address these issues before proceeding with the new installation.
10. Preparing for New Flange Installation
After the old flange and debris are completely removed, inspect the floor around the pipe. Ensure it is level and in good condition. If the subfloor is damaged, make necessary repairs to provide a stable base for the new flange.
Measure the pipe diameter and check compatibility with the new flange. Dry-fit the flange to ensure it sits flush with the floor. This step is crucial because an improperly seated flange will result in an unstable or leaking toilet.

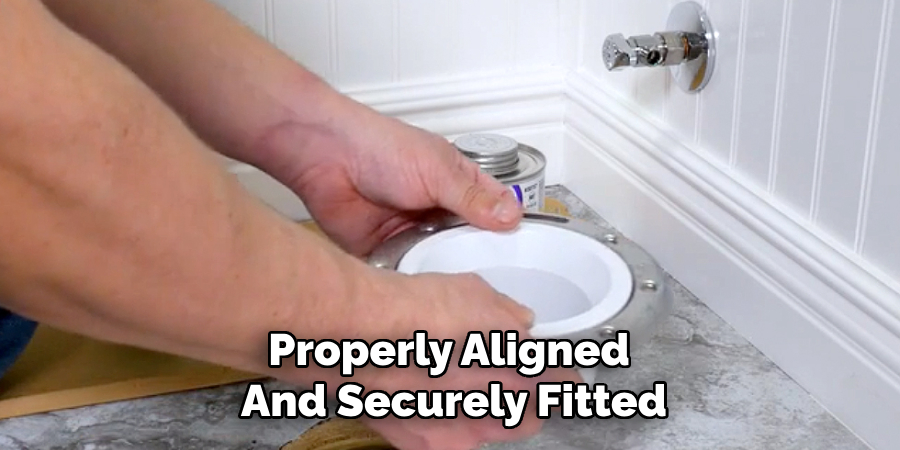

Once everything is prepped and measured, you are ready to install the new flange. Following these steps ensures that the new flange will be properly aligned and securely fitted, preventing future problems.
Conclusion
Removing an old toilet flange may seem daunting, but with the right methods and tools, it becomes manageable. Whether dealing with PVC or cast iron, each flange type requires a slightly different approach. Preparing the area, removing the toilet, and carefully dismantling the old flange are crucial steps in the process.
By following these ten methods, you ensure that the removal process is safe, efficient, and thorough. Properly cleaning the pipe and preparing the floor will make installing the new flange more straightforward. So, there you have it – a quick and easy guide on how to remove old toilet flange.
