When camping or working in remote areas, setting up a proper field latrine is essential for maintaining hygiene and minimizing environmental impact. A well-constructed latrine ensures waste is safely managed, helping to prevent contamination of water sources and reducing the risk of spreading disease. This guide will walk you through the steps of how to set up a field latrine effectively, ensuring cleanliness and sustainability in outdoor settings.
Importance of Proper Sanitation in the Field
Maintaining proper sanitation in the field is critical for protecting both human health and the environment. Without effective waste management, bacteria, parasites, and viruses can spread quickly, leading to outbreaks of illnesses such as diarrhea, cholera, or dysentery. Proper sanitation practices also help to preserve natural resources by preventing the contamination of soil, water, and surrounding ecosystems. Furthermore, maintaining cleanliness boosts morale and ensures a safer and more comfortable experience for everyone in the group. By prioritizing sanitation, you contribute to both individual well-being and the sustainability of the environment.

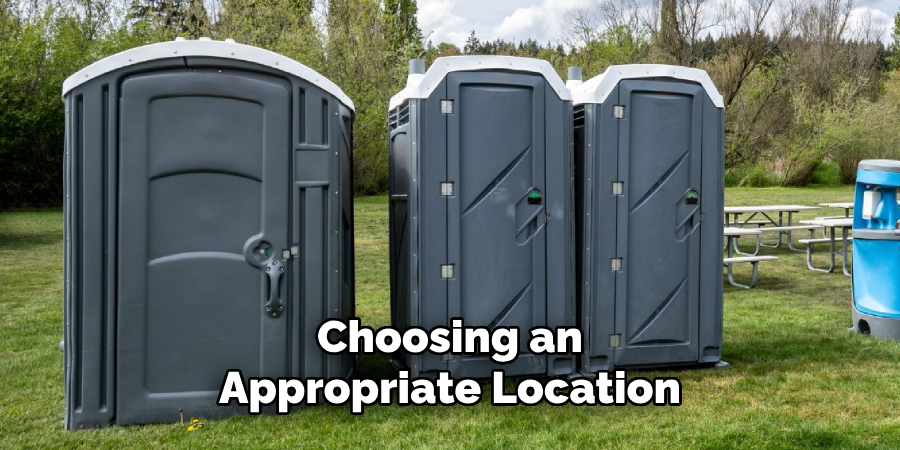

Choosing the Right Location
Selecting an appropriate location is a crucial step in ensuring a sanitary and environmentally friendly setup. When choosing a spot, prioritize areas that are at least 200 feet (about 70 adult paces) away from water sources such as rivers, lakes, and streams to prevent contamination. Look for well-drained terrain that won’t collect water during rain and avoid areas prone to flooding. Additionally, choose a location with minimal vegetation to reduce any impact on local ecosystems. Consider wind direction and proximity to your main campsite to balance accessibility with privacy. By carefully selecting the right location, you can minimize environmental impact and maintain sanitary conditions for your group.
10 Methods How to Set up a Field Latrine
1. Select a Safe and Suitable Site
The foundation of setting up a functional field latrine begins with choosing an appropriate location. This involves more than just finding an empty spot. The site must be situated at least 30 meters (100 feet) away from water sources like rivers, lakes, or wells to prevent contamination. Additionally, the area should be slightly elevated to ensure proper drainage and avoid flooding during rain. It’s also important to choose a place downwind and downhill from living areas, such as tents or campsites, to reduce unpleasant odors and minimize the spread of germs by flies. Finally, the site should offer some natural privacy or the potential to construct a modest privacy enclosure, making users feel more comfortable and dignified.
2. Dig the Latrine Pit Properly
Once the site is chosen, the next step is digging the pit. A standard field latrine pit should ideally be about 1 to 1.5 meters deep and approximately 0.3 to 0.5 meters in diameter for a simple trench-style latrine. The shape may vary depending on available tools and number of users, with wider or multiple pits being necessary for larger groups. The bottom of the pit should be level to allow even waste accumulation. If the soil is sandy or loose, lining the pit with available materials like rocks or wooden planks may help prevent collapse. It’s critical to wear gloves, boots, and protective gear during this process to ensure hygiene and safety for those digging.
3. Build a Stable Platform or Slab
After digging, a platform or slab is constructed to serve as the latrine’s flooring. For temporary use, wooden boards lashed together can provide a serviceable surface, but for longer durations, a concrete or metal slab is more hygienic and sustainable. The platform should be designed with a central hole for waste and be stable enough to support the weight of users. A footrest or squatting guide is a helpful addition for positioning. If available, use waterproof materials and ensure the slab is raised slightly above ground level to keep surface water from entering the pit during rain.

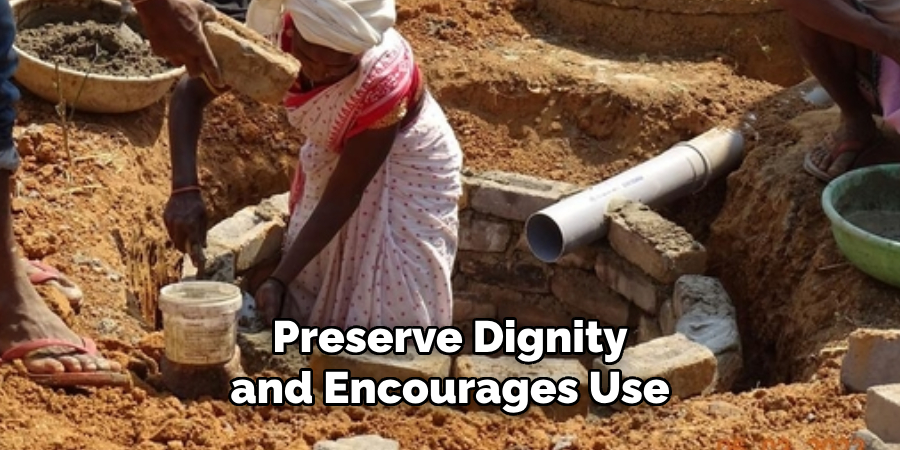

4. Provide Privacy with an Enclosure
No latrine setup is complete without ensuring user privacy. Even in the most basic field conditions, some kind of enclosure around the latrine helps preserve dignity and encourages use. Tarps, branches, corrugated metal, or plastic sheeting can be used to construct simple walls. For added privacy and security, the entrance should face away from common paths and areas. Make sure the enclosure is ventilated to minimize odor buildup. In more permanent setups, constructing a door or curtain helps improve sanitation habits and user satisfaction. The privacy structure should be regularly checked and maintained as materials degrade or weather changes.
5. Include a Ventilation System if Possible
For more advanced field latrines, particularly those intended for longer-term use, a ventilation system dramatically improves sanitation and comfort. A basic vent pipe can be fashioned from PVC pipe or other tubing and inserted into the pit. The top should extend at least 0.5 meters above the roof of the enclosure and be fitted with a fly screen to prevent insects from entering and breeding in the waste. The vent pipe works by drawing odors out of the pit, using heat and airflow dynamics. While not always possible in emergency settings, adding this component to a field latrine when feasible is a major step up in usability.
6. Ensure Proper Drainage and Rain Protection
Protecting your latrine from water intrusion is critical to keeping it functional. Standing water can cause the latrine to overflow, spread contaminants, and weaken the structure of the pit walls. A simple thatch or tarp roof over the enclosure helps prevent direct rain entry, while digging a shallow trench around the latrine perimeter can divert runoff away. Additionally, placing gravel or rocks around the base of the latrine helps with drainage and provides a cleaner walking area. Always monitor the area after rainfall to ensure the measures are working and adjust the slope or trenching as needed.

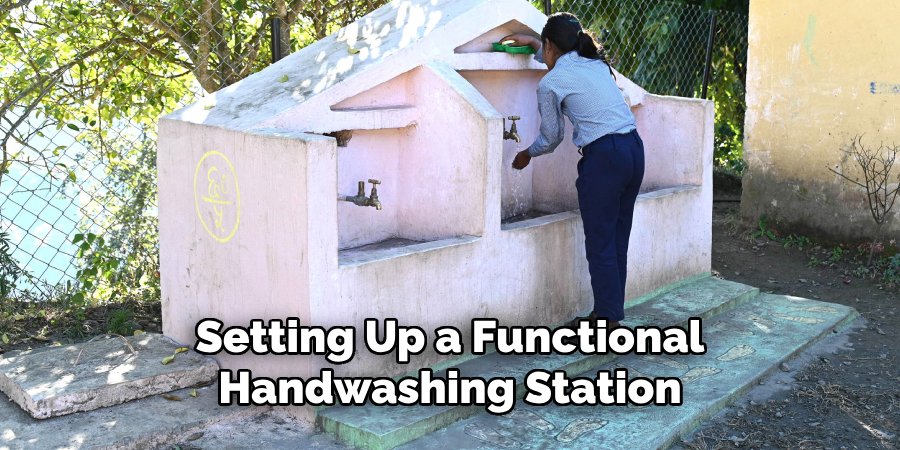

7. Create a Handwashing Station Nearby
Hygiene doesn’t stop at waste disposal—setting up a functional handwashing station adjacent to the latrine is one of the most essential aspects of a field latrine setup. A basic handwashing station can be constructed using a jerry can with a tap, a bucket with a ladle, or a tippy tap (a foot-operated water container made from a plastic jug). Provide soap or ash as cleaning agents and ensure the water supply is regularly refilled. Position the station within visible distance of the latrine but not so close that it risks contamination. Signage or verbal instructions can reinforce the importance of washing hands after use.
8. Implement Regular Maintenance and Waste Management
Setting up the latrine is only the beginning—its maintenance determines how effective it remains. Assign individuals or a sanitation team the responsibility of checking for full pits, damaged structures, and general cleanliness. Covering the waste in the pit with soil or ash after each use helps reduce odor and insect problems. Once the pit is nearing capacity (generally three-quarters full), it must be covered and a new pit dug nearby. Never allow the waste to overflow, as this poses serious health risks. Keeping spare materials like shovels, cleaning tools, and ash nearby supports ongoing maintenance.
9. Educate Users on Proper Use
Even the best-built latrine will fail if users are unsure of how to use it or are uncomfortable doing so. Clear instructions should be communicated verbally or via visual signs, especially in multi-lingual or low-literacy environments. Teach users to always use the drop hole, not to dispose of trash in the pit (unless composting is planned), and to cover waste with soil or ash when appropriate. Encourage handwashing and show how to operate water stations. A well-educated group is more likely to maintain sanitary conditions and respect the latrine’s integrity over time.
10. Safely Decommission Full or Unused Pits
Eventually, every pit will fill, or the site may no longer be needed. Proper closure is essential to avoid contamination or injury. To decommission a latrine, fill the pit with soil, tamp it down, and cover it with heavy material like a concrete slab or large rocks to discourage future use or disturbance. Mark the location clearly, either with signage or a map, so that future digging doesn’t accidentally reopen a contaminated site. If feasible, a planting of non-edible vegetation like grass can help mark the site while also preventing erosion or surface water pooling.
Maintenance and Upkeep
Regular maintenance of a latrine is crucial to ensure its longevity, functionality, and hygiene. Start by inspecting the structure periodically for signs of wear, such as cracks in the walls, damage to the roof, or issues with the door. Addressing these problems promptly helps prevent further deterioration.
Clean the latrine regularly using safe and effective disinfectants to minimize odors, flies, and the spread of disease. Ensure proper ventilation by keeping vents clear of blockages and check the pit level routinely to ensure it does not exceed safe capacity. When the pit is nearing full, begin planning for its decommissioning or the construction of a new facility to prevent overflow issues. Community awareness and education about proper usage and care can also play a vital role in sustaining a clean and functional latrine system.
Conclusion
Proper management and decommissioning of latrines are critical steps in maintaining both public health and environmental safety. By following best practices for closure and ensuring contamination risks are minimized, communities can safely transition from old facilities while protecting surrounding ecosystems. Thanks for reading our blog post on how to set up a field latrine! We hope you found it helpful and informative.
