Compression fittings are a common solution for creating secure, leak-free connections in plumbing, hydraulic, and gas systems. They are widely favored due to their simplicity, as they do not require soldering or welding.
By using basic tools, you can quickly assemble and disassemble a compression fitting, making it an ideal choice for both professionals and DIY enthusiasts. This guide will walk you through the steps of how to use a compression fitting, ensuring a reliable and long-lasting connection.

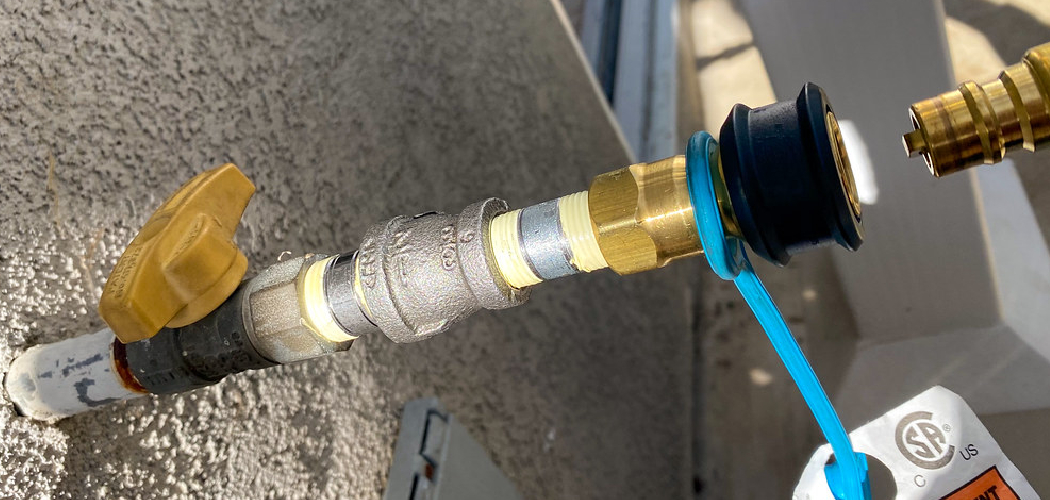

What Is a Compression Fitting?
A compression fitting is a type of connector used to join two pipes or a pipe to a fixture in a way that creates a watertight or airtight seal. These fittings typically consist of three main components: a compression nut, a compression ring (also known as a ferrule), and a compression seat. When the nut is tightened onto the fitting, the compression ring is compressed between the nut and the seat, creating a secure seal around the pipe.
Compression fittings are commonly used in applications involving plumbing, natural gas lines, and hydraulic systems due to their easy installation and effectiveness in preventing leaks. They are highly versatile and compatible with a variety of materials, including copper, plastic, and stainless steel pipes.
Components of a Compression Fitting
A compression fitting consists of three primary components that work together to create a secure and leak-free connection:
Compression Nut
The compression nut is threaded and designed to tighten onto the fitting body. It provides the force needed to compress the ring against the pipe and the seat, ensuring a secure seal.
Compression Ring (Ferrule)
The ferrule is a small, ring-shaped component that is compressed between the nut and the fitting body when the nut is tightened. This compression creates a tight seal around the pipe, preventing leaks.
Fitting Body

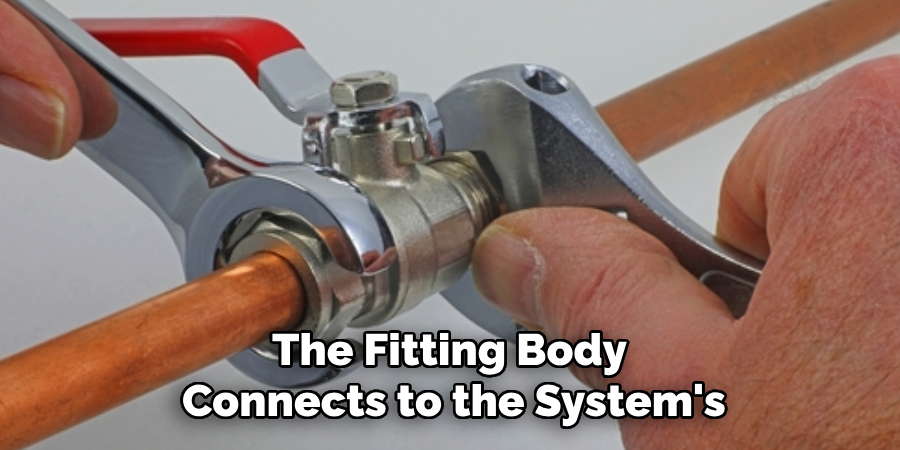

The fitting body serves as the base of the compression fitting. It contains the seat against which the ferrule is compressed, and it typically features threads to accommodate the compression nut. The fitting body connects to the system’s piping or tubing, completing the assembly.
Each of these components plays a crucial role in ensuring the functionality and reliability of compression fittings across various applications.
10 Methods How to Use a Compression Fitting
1. Understanding the Components of a Compression Fitting
Before you begin, it is crucial to familiarize yourself with the basic components of a compression fitting. Typically, a compression fitting consists of three parts: the compression nut, the compression ring (also known as a ferrule), and the fitting body.
The nut slides over the pipe, followed by the ferrule, which compresses between the nut and the fitting body to form a tight seal. Understanding these parts and their functions is essential to properly assembling the fitting and ensuring a leak-proof connection.
2. Selecting the Appropriate Compression Fitting
Choosing the right compression fitting for your specific application is crucial. Compression fittings come in various sizes and materials, including brass, copper, and plastic. The material of the fitting should match the pipe material to maintain compatibility and prevent galvanic corrosion.
Measure the pipe diameter accurately to ensure the fitting fits snugly. Selecting the wrong size can result in leaks or fitting failure. Always purchase fittings from a reputable supplier to guarantee quality and durability.
3. Preparing the Pipe for Installation
Proper preparation of the pipe is critical for achieving a secure connection. Start by cutting the pipe to the desired length using a pipe cutter or hacksaw, ensuring a clean, square cut. Burrs or uneven edges can compromise the seal, so use a deburring tool or sandpaper to smooth the cut edges.
Clean the pipe thoroughly to remove any dirt, oil, or oxidation. This preparation minimizes the risk of leaks and helps the compression ring seat correctly when tightened.
4. Assembling the Compression Fitting

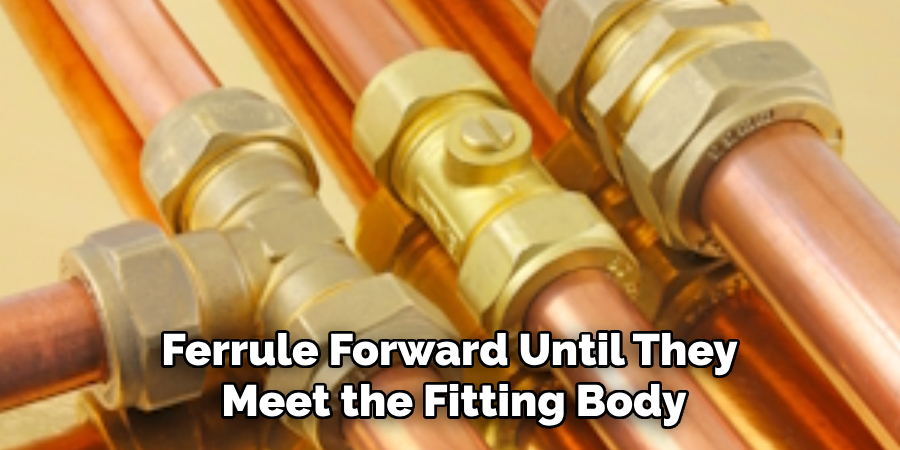

Begin the assembly process by sliding the compression nut onto the pipe, followed by the ferrule. Position the fitting body onto the pipe’s end, making sure it aligns correctly. Push the nut and ferrule forward until they meet the fitting body. Hand-tighten the nut initially to hold everything in place. Proper alignment during this step is essential to avoid cross-threading or improper sealing. Taking the time to assemble correctly will reduce the risk of leaks later.
5. Tightening the Compression Nut
After hand-tightening, use a wrench to secure the nut. Hold the fitting body steady with a second wrench to prevent it from twisting. Tighten the nut slowly, typically making one to one-and-a-quarter turns beyond hand tight.
Over-tightening can crush the ferrule and damage the pipe, while under-tightening may cause leaks. The ferrule compresses between the nut and fitting body, creating a seal. Regular practice helps develop the right feel for proper torque.
6. Testing for Leaks
Once the compression fitting is tightened, it’s essential to test for leaks. Turn on the water or gas supply slowly and observe the connection closely. Look for any signs of drips or moisture around the fitting. If you detect a leak, tighten the nut slightly more (about a quarter turn) and retest.
Avoid excessive tightening, as this may deform the ferrule or damage the pipe. Testing ensures that your fitting is properly sealed and functioning as intended.
7. Reassembling and Adjusting the Fitting
If a leak persists after retightening, disassemble the fitting to inspect the ferrule and pipe for damage. Sometimes the ferrule may have been misaligned or deformed during installation. In such cases, replace the ferrule with a new one and reassemble the fitting. Re-check the pipe for burrs or uneven cuts that might hinder sealing. Proper reassembly and adjustment can often resolve persistent leaks without replacing the entire fitting.
8. Dealing with Stuck or Corroded Fittings

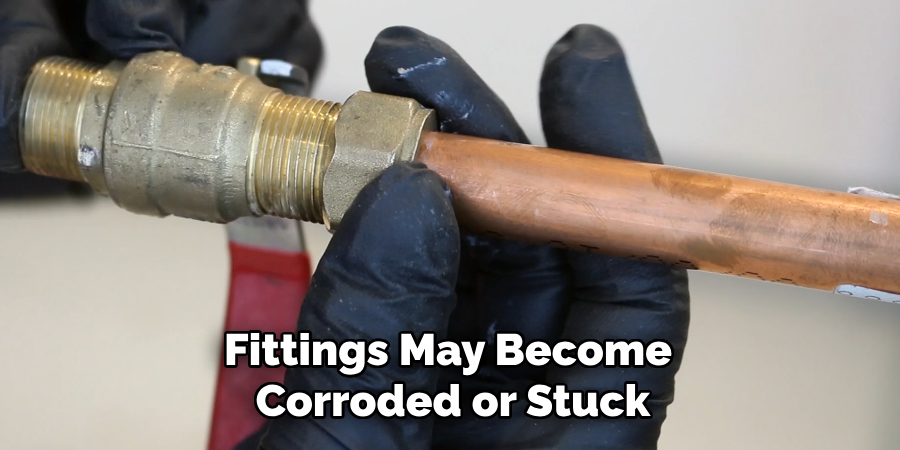

Over time, compression fittings may become corroded or stuck, making removal challenging. To loosen a seized fitting, apply penetrating oil to the threads and let it sit for several minutes. Use two wrenches to carefully break the nut free while holding the fitting body.
If the fitting remains immovable, gently heat the nut with a propane torch to expand the metal. Be cautious when applying heat, as it can damage plastic pipes or surrounding materials. Safely removing stubborn fittings allows for proper maintenance or replacement.
9. Reusing Compression Fittings
While compression fittings are generally designed for one-time use, they can occasionally be reused if disassembled carefully. Inspect the ferrule for signs of deformation or wear, as a damaged ferrule cannot form a proper seal again.
If the ferrule and nut appear intact, clean them thoroughly before reinstallation. Replace the ferrule if in doubt. Reusing compression fittings can save time and resources, but always test the reassembled fitting for leaks to ensure reliability.
10. Applying Thread Sealant
In some situations, adding a thread sealant or pipe joint compound can improve the connection’s longevity and leak resistance. Apply a small amount of plumber’s tape or pipe dope to the threads before sliding on the compression nut. Be careful not to let sealant touch the ferrule, as it can interfere with proper compression.
This additional step helps secure the joint, especially when dealing with older fittings or pipes prone to minor leaks. Thread sealant also helps protect metal threads from corrosion, extending the fitting’s service life.
Maintenance and Upkeep
Proper maintenance of compression fittings is essential to ensure their long-term functionality and prevent potential issues. Regularly inspect the fittings for signs of wear, corrosion, or leaks, particularly in areas exposed to moisture or varying temperatures. If you notice any water seepage, tighten the compression nut gradually—over-tightening can damage the ferrule and compromise the joint.
Additionally, periodically clean the fittings to remove dirt or buildup that could affect their performance. For older plumbing systems, consider reapplying plumber’s tape or pipe dope when disassembling and reassembling joints to maintain a secure seal. Routine checks and minor adjustments can significantly extend the lifespan of your fittings and reduce the likelihood of costly repairs.
Safety Considerations
When working with plumbing systems, safety should always be a top priority. Begin by turning off the water supply to avoid unintended leaks or flooding. If you are dealing with heated pipes or hot water systems, allow sufficient time for the pipes to cool down before handling them to prevent burns. Use appropriate tools and protective gear such as gloves and safety goggles to minimize the risk of injury.
Additionally, ensure the work area is well-ventilated, especially if you are using adhesives or sealants that emit fumes. For tasks involving electrical connections near plumbing, shut off the power to avoid electrical hazards. By adhering to these safety measures, you can significantly reduce the risks associated with plumbing maintenance or repair.
Conclusion
Using compression fittings correctly is essential for ensuring leak-free and long-lasting connections in plumbing and gas systems. From choosing the right fitting to tightening and testing the joint, each step plays a vital role in the fitting’s performance.
By following these ten methods, you can confidently install or repair compression fittings with precision and care. Proper technique not only prevents costly water damage but also maintains the integrity of your piping system. Thanks for reading, and we hope this has given you some inspiration on how to use a compression fitting!
